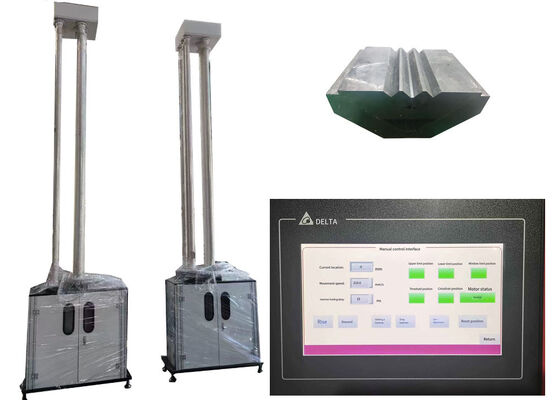

Drop Hammer Test Equipment for Plastic Pipe Impact Testing
This drop hammer impact testing machine fully conforms to international specification criteria including ISO 3127, ASTM D2444 and equivalent test methodologies. It provides accurate impact toughness evaluation for plastic pipe materials with advanced safety features and precise measurement capabilities.
Application Areas
Extensively applied by plastic pipe research institutes, testing laboratories and production enterprises to evaluate impact toughness of pipe materials. This high-performance testing device perfectly fits application demands of building material sectors and scientific research establishments.
Key Features
- Integrated safety protection mechanism adhering to 89/392/EEC safety standard
- Industrial color human-machine interface with PLC distributed control structure
- Impact height configurable from 200mm to 2000mm with 100% secondary shock absorption capture rate
- Vacuum adsorption technology for efficient hammer release and capture with maximum speed of 2m/s
- Automatic height calibration with accuracy within ±1mm deviation
- Independent impact hammers for specific energy grades with convenient selection and extended service life
Technical Specifications
| Model |
XJL-630S |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5kg-16kg |
| Hammer Diameter |
D25mm, D90mm |
| Height of Fall |
20mm-2000mm, error ≤ ±2mm |
| Lifting Speed |
2m/s |
| Sample Diameter |
Φ16mm-Φ630mm (customizable) |
| Impact Center Deviation |
≤2mm |
| V-type Support |
120° |
| Power Source |
220VAC ±10% |
| Dimensions |
930mm × 700mm × 3740mm |
| Net Weight |
360kg |
Compliance Standards
ASTM D2444, ISO 4422, ISO 3127, BS EN 1411 and BS EN 744.
Support and Services
We provide comprehensive technical assistance and after-sales services including equipment setup, daily maintenance, fault elimination, instrument calibration, and personalized solution development. Our service team maintains 24/7 standby status to address all technical consultations and operational inquiries.
Packing and Shipping
Equipment is securely packaged in standard export wooden crates including main equipment body, operation manuals, and all auxiliary components. Complete shipping documentation provided with charges assessed based on destination and shipping method.
Frequently Asked Questions
What defines Drop Hammer Test Equipment?
Developed and produced by JHH based in Beijing, China, this is a professional testing apparatus dedicated to evaluating impact resistance performance of various test specimens.
What core function does this equipment serve?
Designed to quantify impact resistance properties of different products, serving as a key testing tool to verify and guarantee standardized product quality.
What testing specimens are compatible?
Applicable to tubular products including PVC-U water supply pipe, sewage pipe, low pressure water supply pipe, transmission pipe, core layer foam pipe, double wall corrugated pipe, PE water supply pipe, and hard plastic plates.
What level of precision does the equipment deliver?
Features high testing precision rating of 0.5%.
What is the peak testing capacity?
Maximum testing energy output of 300J.
